ENERGY SAVING SHADES IS THE WORLD LEADER IN MANUFACTURING ENERGY SAVING SHADES

FAA Specified Shade Materials

5 + Mil with Scratch Resistant Coating on one side Two Material Selections



Energy Saving Shades’ FAA#25 Industrial Strength shades are ideal for Southern and Southwestern Areas where the sun is brighter. A highly transparent metallic coating between the layers provides heat reducing values. All the shades should be lowered for a uniform light balance.

SS#2470B Northern Areas where the sun is less intense.

  • Material Seams (when required) laminated and welded.

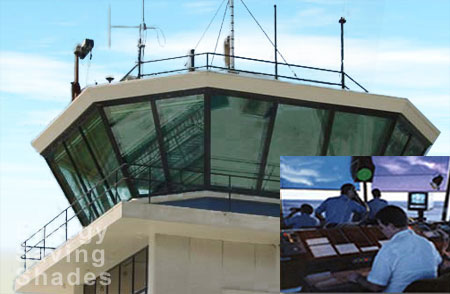

  • Towers requiring double shades for intense blinding glare.
  • Suggest one set of 2470B and one set of FAA#25 Industrial Strength.

FAA Spec Rollers – 1 3/4 or larger with replaceable drive mechanism. No tools required. Small shades may be installed on smaller diameter rollers.

  • Idler Side Pin End – Case Hardened will not cut through from wear.
  • Bottom Bar – Dulled Black Roll Form Steel 1/2 x 1 with Soft End Caps
  • Cord connection on Bottom – Stainless Steel open loop EZ cord replacement.
  • Directional Pulley – Stainless Steel free running secured to center of the window sill. Additional pulleys may be required.
  • Cord Lock – Self closing Cam free running with quick side pull release.


ESS: Attaching FAA Shade Material:
